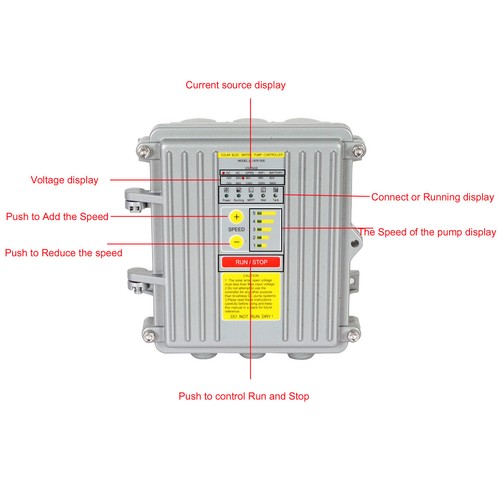

Description Solar power surface centrifugal pump(Stainless steel booster pump) are high quality products widely used in both residential and agricultural pumping water, pressurizing, irrigation.The system can be met directly from solar panels which means no electricity costs and significant benefits to the environment. Solar pump uses a DC Sensorless Brushless Motor for high efficiency and reliability, which is connected to PV array via a BLDC controller. The controller monitors the system, controls the pump speed and optimizes the amount of water pumped based on the power available. Specifications 1.100W Mono Solar Panel Type 100W Mono Panel Related Power 100W Maximum/Peak Voltage(Vmp) 18V Open Circuit Voltage(Voc) 21.6V Maximum/Peak Current(Imp) 5.55A Short Circuit Current (Isc) 6.11A Output Tolerance ±3% Temperate Coefficient Of Isc (010+/- 0.01 ) %/℃ Temperate Coefficient Of Voc - (0.38 +/-0.01 ) %/℃ Temperate Coefficient Of Power Voc -0.47%/℃ Temperature Range -40℃to +80℃ Frame Heavy Duty Aluminum Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm Size 1010mm*510mm*35 mm（39.8*20.1*1.4 In） 2.Solar Water Pump Rated Power (W/HP):750W /1HP Rate Voltage (Vdc):72VDC MAX Flow (m3/h):6.6 m3/h MAX Head (M):32M Inlet(In)：1" Outlet(In):1.25" Maximum suction(M):8M Motor:Permanent Magnet Brushless DC Motor (Without Hall) Motor Body :Die-cast Aluminium Bear : NSK Impeller :Plastic Screw :316 Stainless Steel Cable :2 meters / Three-core copper cable /2.0mm2 Curve Model Flow (m3/h) 0 0.55 1.61 2.89 4.06 5.13 6.67 CPM7.5/33-D72/750 Head (m) 33 30 25 20 15 10 3.2 3.MPPT Controller Feature 1.Update solar panels . use monocrystalline solar panels with higher photoelectric conversion efficiency2.Fast water and large amount of water 3.Large delivery volume, high delivery pressure, aimed the maxi-mum of this class 4.Energy came from the sun, no need any other extra power supply. 5.Permanent Magnet Brushless DC Motor，No frequent start, smooth running. 6.Overheating protection,Water shortage protection 7.With MPPT Pump Controller, Electronic monitoring gives the controller the capability to monitor the system and automatically shut 8.Easy carrying and easy installation 9.Corrosion resistant and rust proof 10.Monocrystalline solar panels with long service life, Life span up to 25 years(The Solar Panel Power output warranty: 5 year-95% 10 year-90% 25 year-80%) 11.Strictly quality control , Waterproof,Low degradation,Excellent performance in harsh weather(hail, snow and ice...) Application 1. Poor water and electricity resources area2. Residential / commercial high-rise supercharged3.Ransfer clean water or other liquids similar to water in physical and chemical properties.(such as pesticides, milk, liquid petroleum)4.Hot water circulation5.Domestic water self-priming boost6.Garden, courtyard, agricultural and animal husbandry sprinkler or water storage booster pump7. Farming system water cycle treatment system application 8.Solar boost Package Include 12pcs 100W Mono Solar Panel 1pcs MPPT Pump Controller 1pcs Solar power surface centrifugal pump
